N Scale Passenger Car Lighting Boards

  • Super capacitors are included (optional on most competitors products).
  • 8 Leds for even lighting (competitors products have less).
  • Adjustable brightness.
  • Maximum track voltage is 16 Volts.
  • Magnetic light on/off control.

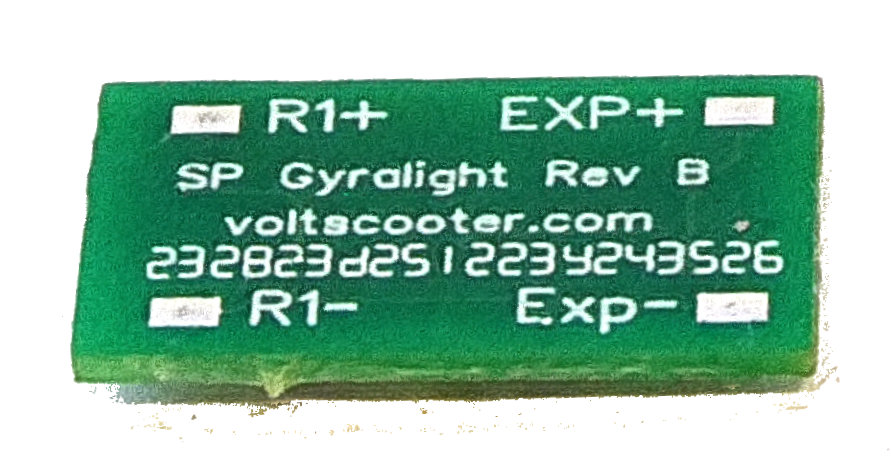

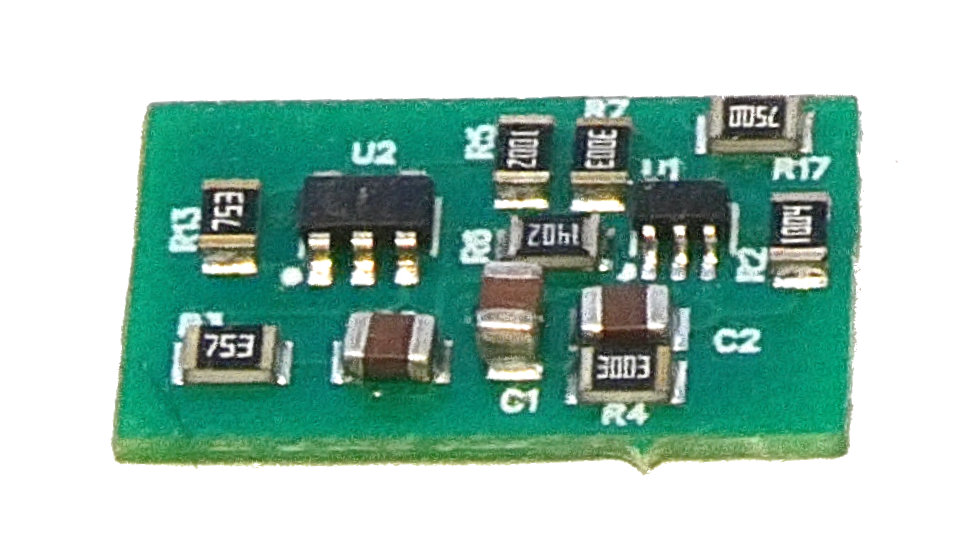

Super-capacitors and regulators provide constant lighting. Each board has 8 LEDs to insure uniform lighting (see photos). The LEDs are designed to simulate incandescent style lighting. Instructions and most parts for installation in cars without pickups are included. Metal wheels are required and must be obtained separately. This board is a drop in replacement for Walther’s and Railsmith N Scale passenger cars, it can also use existing pickups, or you can use supplied parts to make your own pickups. If you are pulling the car with steam then the use of Kato or similar passenger trucks are recommended as they have the lowest possible rolling resistance. Adjustable from dim to bright while installed in the car. When adjusted for normal light levels the car will remain lit at constant brightness for up to a 30 seconds after power is removed. Size: 5.6”(143 mm) x 0.51”(13 mm)
x 0.2”(5 mm). The board can be shortened as much as 2.2” (58 mm) to 3.4” (87 mm) overall length. Click here to download the product pamphlet and description. Click here to download detailed installation instructions.

Reviews:

N Scale Passenger Car Light Board
5.0 rating based on 12,345 ratings
Overall rating: 5 out of 5 based on 2 reviews.

N scale passenger car light boad
★★★★★
“ Outstanding!! I placed three of them in Walthers cars and was able to match the intensity to the same level as my Kato lighted cars. I did have to remove the Walthers contacts, as they were worthless. Instead, I soldered the phosphor wire to the boards and ran them underneath the cars, as described for the Kato conversion. It's a nice light, easily adjustable, NO FLICKER and sure beats the heck out of batteries!”
- Bob Paquette

Great Lights, Even Better Support!
★★★★★
“ Installed in my Kato Daylight cars. The lights are easy to install and stay on even on dirty spots and turnouts. I can pull my car off the track and the lights stay on for about a minute. It's that good. Even better is the support here. If something is messed up--even if it's your fault---he will replace the lights for you. These make a huge difference on the layout. Very realistic.”
- Steve Rawley

Add your review here:

Name
Email
Review Title
Rating
Review Content

* U.S.A. Shipping is $5, Canada 9.95 USD, otherwise 14.95 USD
